Glass-lined Equipment is made of glass coating and steel plate, glass coating is fused onto the surface of steel plate at high temperature, which have the advantages anti-corrosion for glass and strength for steel plate. Glass-lined Equipment is an ideal material for anti-corrosion and its surface is very easy to polish and no contamination to mediums, it is widely used in the fields of petrochemicals, light industry, pharmaceuticals, pesticide, foodstuff, dyes, scientific research etc. 1000-5000L strong anti0corrossion glass-lined equipment manufactured by our plant is authorized as "New Product os state grade by national scientific and technological committee & National Bureau for supervised technology etc. five departments. Glass-lined shell and Tube heat Exchanger manufactured by our plant is an epoch-making products and filled up domestic blank space.
|
 |
 |
|
 |
 |
Chemical Resistivity
|
Medium
|
Concen-tration
|
Temperature
 |
Perfor-mance
|
Medium
|
Concen-tration
|
Temperature
|
Perfor-mance
|
|
HCl
|
5-20
|
Boiling point
|
Good
|
H3PO4
|
30-60
|
Boiling point
|
Not good
|
|
H2SO4
|
0-30
|
Boiling point
|
Better
|
H3PO4
|
80
|
100
|
Not good
|
|
H2SO4
|
0-30
|
180
|
Not good
|
HBr
|
Full concen-tration
|
100
|
Better
|
|
H2SO4
|
70-100
|
240
|
Better
|
CH3COOH
|
Full concen-tration
|
100
|
Better
|
|
HNO3
|
5-50
|
100
|
Better
|
CH3CHOHCOOH
|
0-30
|
100
|
Better
|
|
HNO3
|
5-50
|
150
|
Not good
|
Cl2
|
100
|
100
|
Better
|
|
HNO3
|
100
|
70
|
Better
|
H2C2O4
|
Full concen-tration
|
100
|
Better
|
|
H2CrO4
|
Full concen-tration
|
100
|
Better
|
NaOH
|
25
|
40
|
Good
|
|
H3PO4
|
10-60
|
100
|
Better
|
Na2CO3
|
1-20
|
60
|
Not good
|
|
H3PO4
|
10-20
|
Boiling point
|
Better
|
Na2CO3
|
25
|
40
|
Good
|
Main Technical Performance of glass-lined equipments
|
Type
|
Mpa Max. Operation pressure
|
Operation Temperature
|
Glass-lining Thickness
(mm) |
High Voltage Test to glass-lining layer
|
|
|
Inner of Vessel
|
Inner of Jacket
|
||||

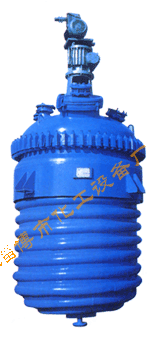

| K,F Type Reactor |
1.0
|
0.6
|
-20
Thermal Shock 120 |
0.8-2.0
|
20(Retest of users)
|
| K,F Type Storage Tank |
0.25
|
||||
| Distillation pan |
0.25
|
0.6
|
|||
| glass-lined plate type condenser | ordinary pressure | ordinary pressure | |||
Remarks: The user must make an indication when operation pressure over 0.74Mpa or Operation temperature lower 0℃ inside the vessel.
