Horizontal Glass-lined Storage Tank

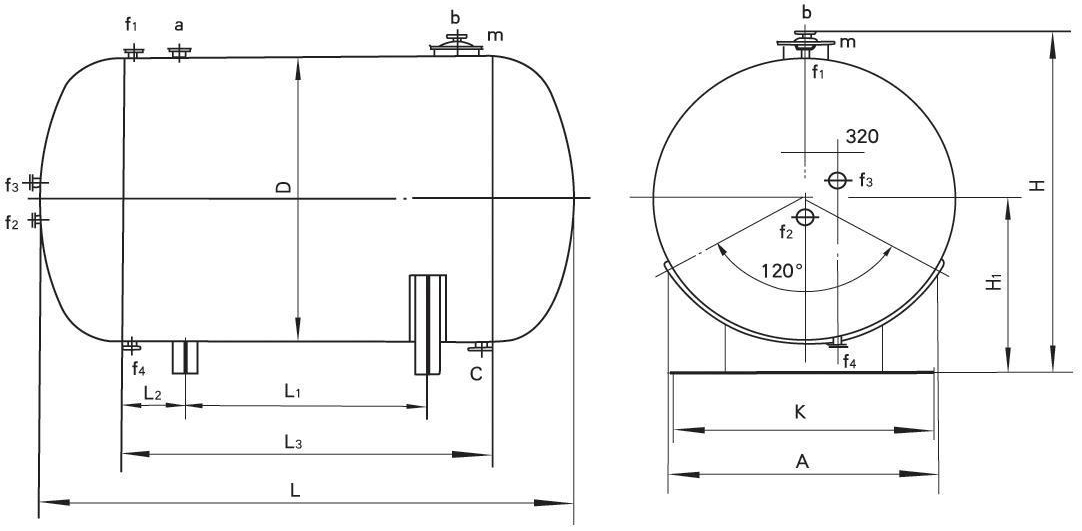

Standard dimensions of Horizonta Storage Tanks & Nozzles dimension Table

Nominal Capacity L	Actual Capacity L	Size(mm)									Nozzle Dimension					kg Total weight
Nominal Capacity L	Actual Capacity L	D	H1	H	L1	L2	L3	L	A	K	A	B	C	F_1-4	m	kg Total weight
3000	3337	1450	1089	2146	794	330	1454	2288	1300	1090	80	70	80	70	300 X 400	1250
4000	4457	1450	1089	2146	1474	330	2134	2968	1300	1090	80	70	80	70	300 X 400	1590
5000	5550	1600	1166	2300	1420	360	2140	3052	1430	1180	80	70	80	70	300 X 400	2020
6300	7024	1750	1243	2454	1474	390	2254	3246	1560	1300	80	70	80	70	300 X 400	2560
8000	8910	1900	1318	2604	1590	420	2430	3496	1690	1420	80	70	80	70	300 X 400	2960
10000	11094	2000	1368	2704	1880	450	2780	3900	1780	1490	100	80	100	70	300 X 400	3730
12500	13921	2000	1368	2704	2704	470	3680	4800	1780	1490	100	80	100	70	300 X 400	4570
16000	17756	2200	1470	2908	2840	500	3840	5080	1950	1680	100	80	100	70	300 X 400	5570
20000	22332	2400	1572	3112	2930	550	4030	5374	2130	1890	100	80	100	70	300 X 400	6910
30000	33300	3000	1876	3720	2370	630	3630	5282	2650	2430	100	80	100	70	300 X 400	9680
40000	41000	3000	1876	3720	3460	630	4720	6356	2650	2430	100	80	100	70	300 X 400	11350
50000	51600	3000	1876	3720	4960	630	6220	7856	2650	2430	100	80	100	70	300 X 400	14500
